Signage Grade ACP

Panel Master Signage Grade ACP have rich color options give designers countless possibilities to create a diverse and highly recognizable store image. The unique material properties of Panel Master Signage Grade ACP can be processed into various shapes required, allowing designers to design a store structure with design orientation.

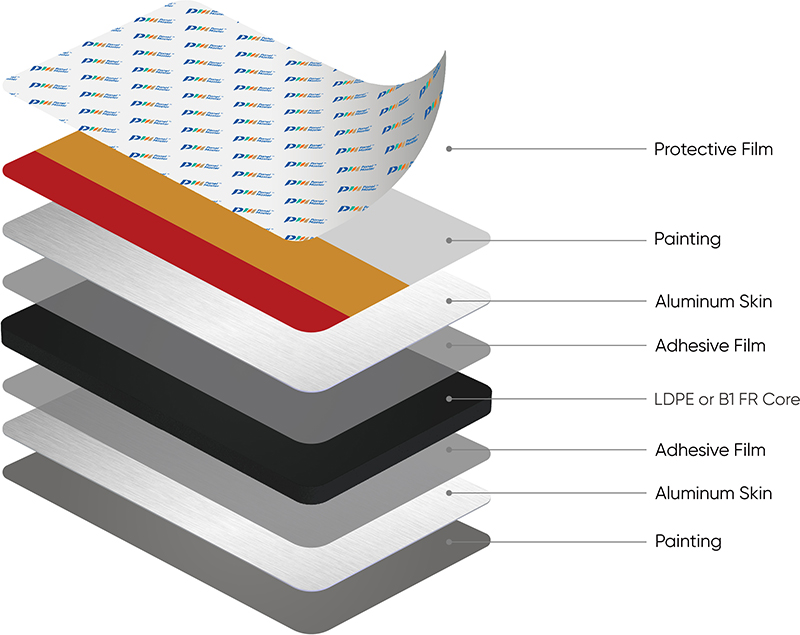

Signage Grade ACP can be classified into LDPE grade and B1/FR grade based on the type of core material used.

Colors & Finishes Processing Method

APPLICATION

Uv Printing

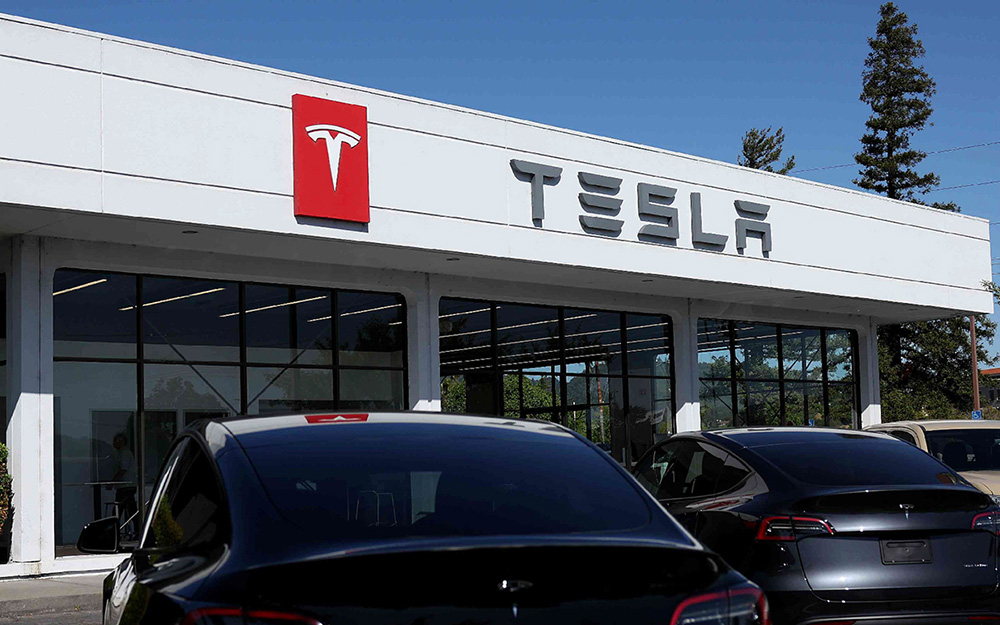

Car Dealerships

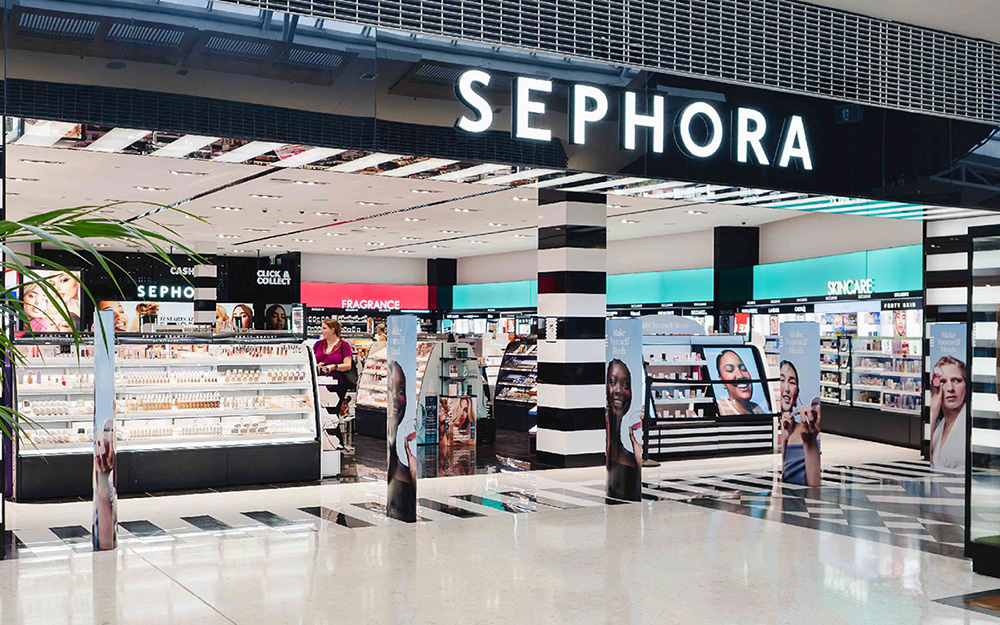

Commercial Chain

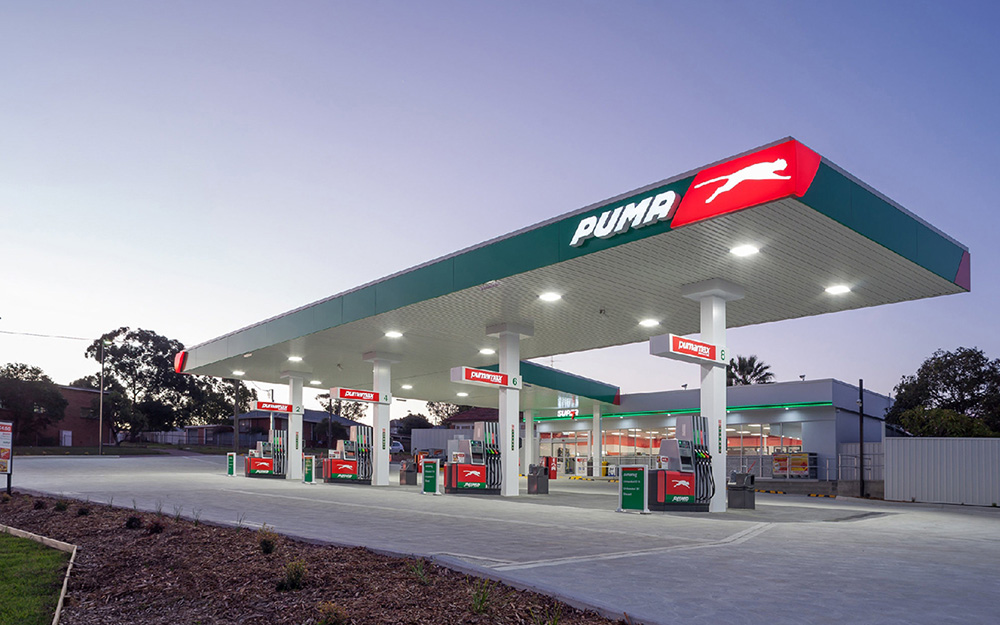

Gas Station

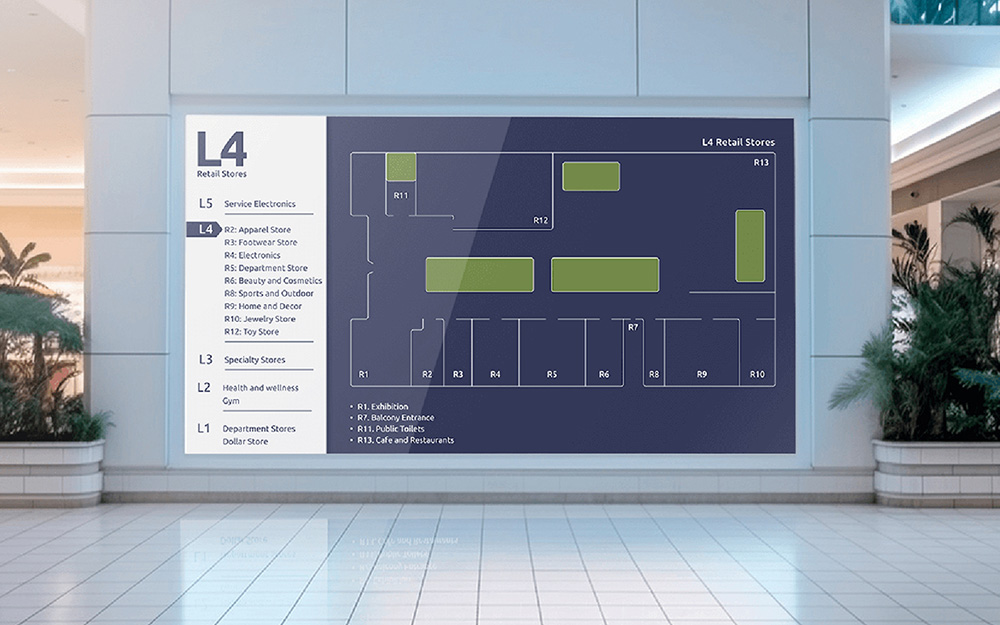

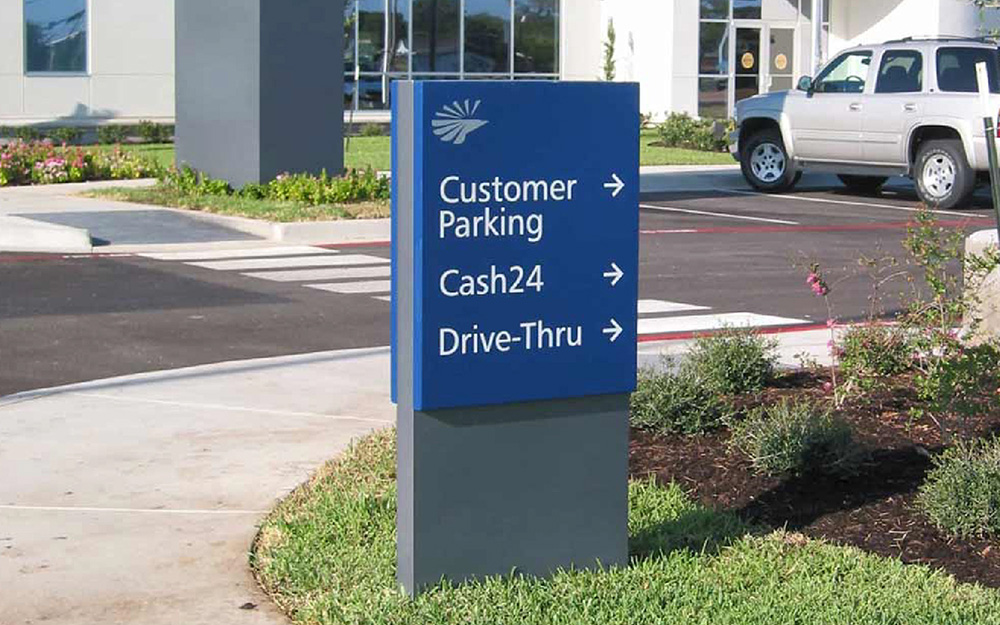

Guide Sign
Business Activity

Technical Data

Item	units	Signage Grade ACP
	units	Alu. Thickness: 0.2mm
	mm	2	3	4	6
Alu thickness tolerance	mm	±0.02
Alu grade		1100
Panel weight	Kg/m2	2.73	4.08	5.23	7.53
Panel length tolerance	mm	±3
Alu grade	mm	±2
Alu grade	mm	±0.2

Performance index

Item	units	Signage Grade ACP
	units	Alu. Thickness: 0.2mm
	mm	2	3	4	6
Mechanical Property
Bending strength	MPa	≥50
Penetration resistance	MPa	≥3
Shear strength	MPa	≥12
Tensile strength of Alu	MPa	≥145
Alu Proof stress(0.2%)	MPa	≥115
The elongation of Alu	%	≥2
Liner thermal expansion	mm/m °C-1	≤2.4(100°C) Aluminum product
Liner thermal expansion	mm/m °C-1	≤0.0004 Composite panel
Thermal deformation temperature	°C	≥85
180° peel strength	N/mm	≥4
Heat resistance water	/	No change
Composite Panel Core
Core density		0.93~1.18
Coating
Coating thickness	μm	Single avg≥16 min≥14; Double avg≥25 min≥23; Third avg≥32 min≥30
glossiness	%	≥25
Coating hardness	/	≥HB
Acoustic Performance
Sound absorption factor	α	0.05
Sound insulation factor	dB	23	25	26	27
Thermal Performance
Heat transition coefficient	W/mK	5.98	5.65	5.54	5.34

Product Range

Thickness (mm)	2	3	4	5	6	8
Formats (B×L)
1000x2440mm	●	●	●	●	●	●
1000x3050mm	●	●	●	●	●	●
1000x4050mm	●	●	●	●	●	●
1250x2440mm	●	●	●	●	●	●
1250x3050mm	●	●	●	●	●	●
1250x4050mm	●	●	●	●	●	●
1500x2440mm	●	●	●	●	●	●
1500x3050mm	●	●	●	●	●	●
1500x4050mm	●	●	●	●	●	●
1575x2440mm	●	●	●	●	●	●
1575x3050mm	●	●	●	●	●	●
1575x4050mm	●	●	●	●	●	●
1750x2440mm	●	●	●	●	●
1750x3050mm	●	●	●	●	●
1750x4050mm	●	●	●	●	●
2000x2440mm	●	●	●	●	●
2000x3050mm	●	●	●	●	●
2000x4050mm	●	●	●	●	●

* The above information is the standard size when shipping from the factory, which can be cut into the specifications you need according to customer needs
