Digital Printing Grade ACP

Panel Master Digital Printing Grade ACP (Inspire series) is specifically developed for the digital printing industry, the panel surface is very flat and homogeneously smooth, provides outstanding ink adhesion and is printable on all standard flatbed printers e.g., Fujifilm Inca Onset Series, Efi Pro Series. HP Latex Series.Canon Arizona Series. We recommend using UV curable ink or solvent ink, these ink types are generally able to achieve better adhesion on the surface of Panel Master Diaital Panel and have better durability for outdoor environments and other special applications.

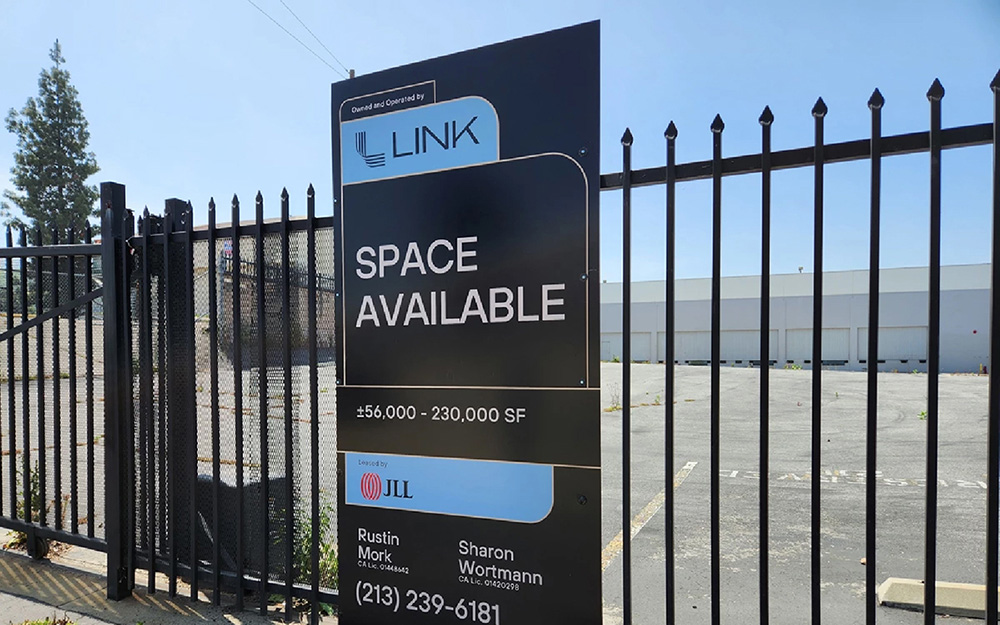

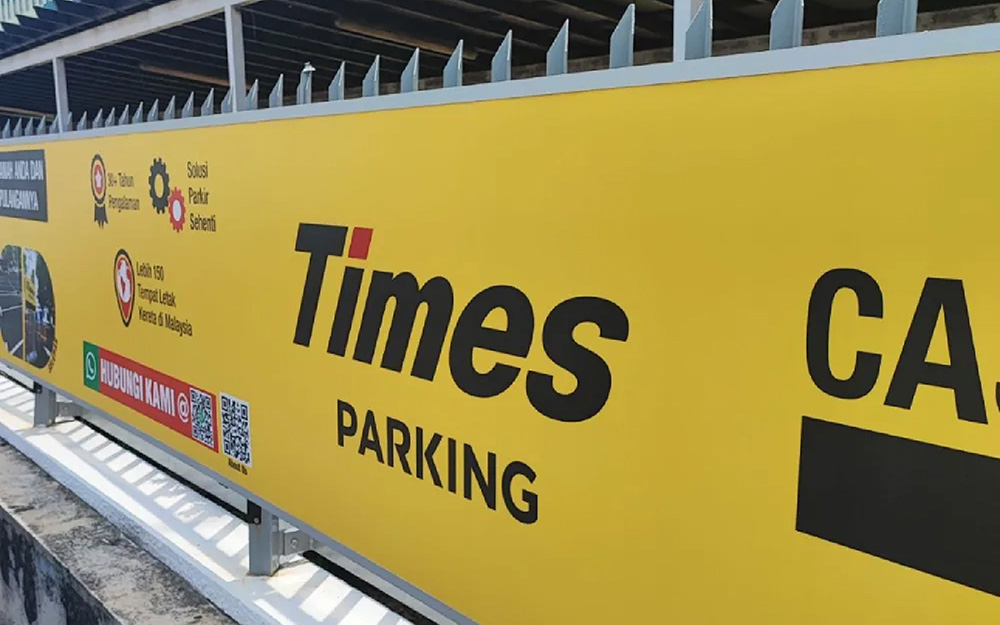

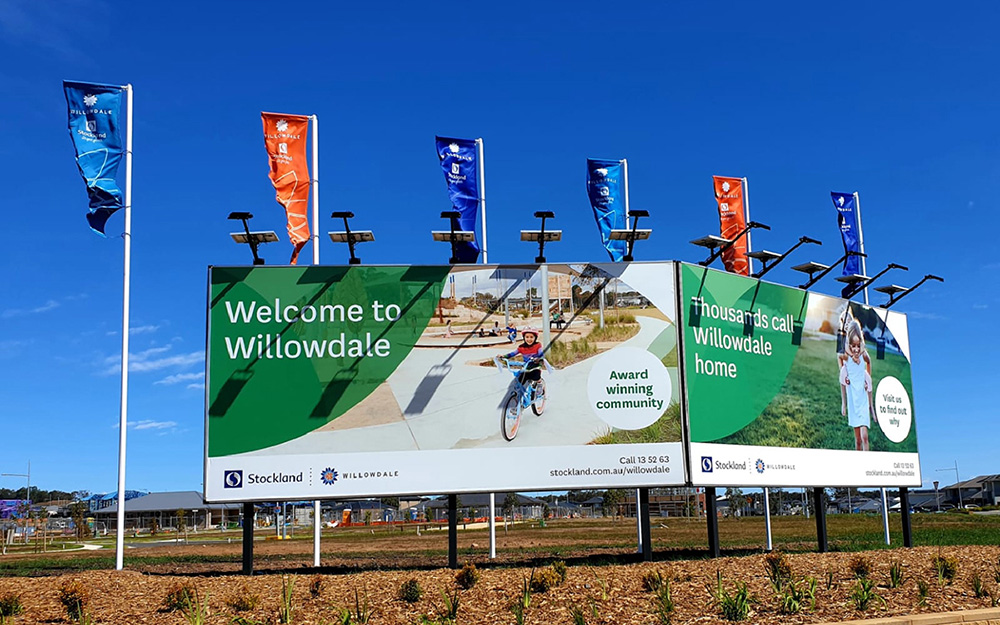

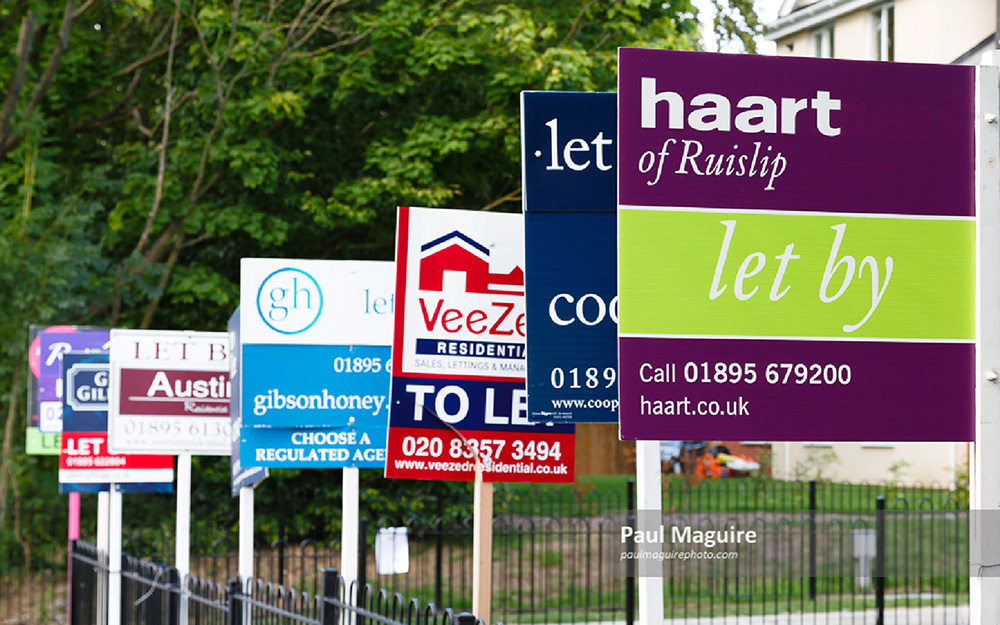

Panel Master ACP(Inspire series) is resistant to temperatures ranging from +80℃ to -50℃, as well as resistant to water and UV. This means that it remains unaffected by yellowing or distortion caused by UV lamps. As a result, digitally printed signs can be used for the long term while maintaining their color quality even when placed outdoors.

Processing Method BRAND COLLABORATION

Technical Data

Item	units	Digital Printing Grade ACP
	units	Alu. Thickness: <0.2mm
	mm	2	3	4	6
Alu thickness tolerance	mm	±0.02
Alu grade		1100
Panel weight	Kg/m2	2.87	4.02	5.17	7.47
Panel length tolerance	mm	±3
Alu grade	mm	±2
Alu grade	mm	±0.2

Performance index

Item	units	Digital Printing Grade ACP
	units	Alu. Thickness: <0.2mm
	mm	2	3	4	6
Mechanical Property
Bending strength	MPa	≥40
Penetration resistance	MPa	≥2
Shear strength	MPa	≥8
Tensile strength of Alu	MPa	≥125
Alu Proof stress(0.2%)	MPa	≥115
The elongation of Alu	%	≥1
Liner thermal expansion	mm/m °C-1	≤2.4(100°C) Aluminum product
Liner thermal expansion	mm/m °C-1	≤0.0004 Composite panel
Thermal deformation temperature	°C	≥85
180° peel strength	N/mm	≥3
Heat resistance water	/	No change
Composite Panel Core
Core density		1.15~1.20
Coating
Coating thickness	μm	Single avg≥16 min≥14; Double avg≥25 min≥23; Third avg≥32 min≥30
glossiness	%	≥25
Coating hardness	/	≥HB
Acoustic Performance
Sound absorption factor	α	0.05
Sound insulation factor	dB	23	25	26	27
Thermal Performance
Heat transition coefficient	W/mK	5.98	5.65	5.54	5.34

Product Range

Thickness (mm)	2	3	4
Formats (B×L)
1000x2440mm	●	●	●
1000x3050mm	●	●	●
1000x4050mm	●	●	●
1250x2440mm	●	●	●
1250x3050mm	●	●	●
1250x4050mm	●	●	●
1500x2440mm	●	●	●
1500x3050mm	●	●	●
1500x4050mm	●	●	●
1575x2440mm	●	●	●
1575x3050mm	●	●	●
1575x4050mm	●	●	●
1750x2440mm	●	●	●
1750x3050mm	●	●	●
1750x4050mm	●	●	●
2000x2440mm	●	●	●
2000x3050mm	●	●	●
2000x4050mm	●	●	●

* The above information is the standard size when shipping from the factory, which can be cut into the specifications you need according to customer needs
